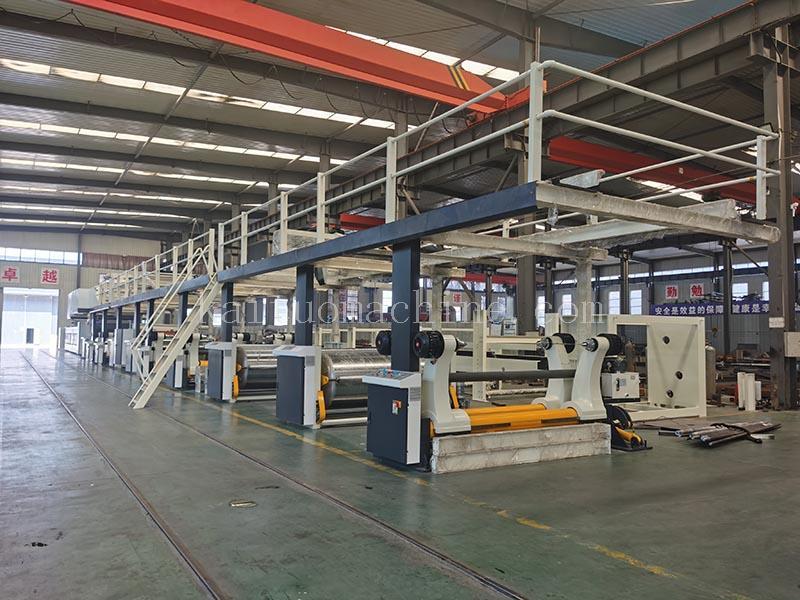

SD+ Series standard plus corrugated board line
Advantage:
1. Roller Fixed single facer
2. Auto splicer
3. Auto web guider & tension controller
4. Shoes system pressure
5. Single NC slitter
6. Gantry stacker
7. Auto glue kitchen
8. Simple Production manage system
Technical Parameter (5ply as example)
Model | Width (mm) | Max. Speed (m/min) | Steam Cons. (kg/h) | Power (kw) | Steam pressure (Mpa) | Air Pressure (Mpa) |
WJ250-2200 | 2200 | 250 | 3800 | 350 | 1.2 | 0.7 |
WJ200-2200 | 200 | 3200 | 310 | |||
WJ150-2200 | 150 | 2800 | 270 | |||
WJ250-1800 | 1800 | 250 | 3000 | 320 | ||
WJ200-1800 | 200 | 2400 | 280 | |||
WJ150-1800 | 150 | 2200 | 240 |
