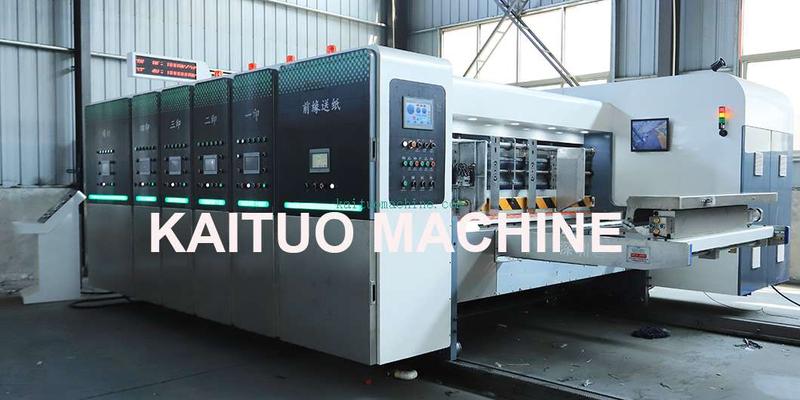

Technical Parameter

Structure Features:

1. Feeding unit

Ø Servo Pressure free feeding, front and back vacuum box adopts inverter control.

Ø Main machine inverter control, main motor start protection device.

Ø Electric separation, pneumatic locking up, when moving with alarming, with Friction clutch, each unit with Emergency stop switch.

Ø Left, right and back baffle adopt motorized adjusting, front baffle synchronous adjusting by hand wheel, with Skip feed function.

Ø Equipped with brush and top vacuum suction dust clean device, improve printing quality.

Ø Main touch screen function: Auto correction the plate, order storage, display speed, quantity, Auto return Zero function.

2. printing unit

Ø Vacuum transfer with ceramic wheel, stable transport corrugated board, Vacuum inverter adjust.

Ø Ratchet fixed type plate roller, 360^o adjusting plate position, fast correction plate position, full hanging plate groove, foot-switch control install or unload the plate, plate roller electric traverse.

Ø Anilox roller pneumatic up and down, when feeding start, Anilox roller come down touch plate, when feeding stop, Anilox roller separating with plate roller, Anilox roller auto wash, electric ink distribution. Two-way ink pump

Ø Printing phase adopts PLC control 360^o adjust, after washing plate, auto memory function.

Ø Double air cylinder locking position ,Two-way ink pump.

3. Computer slotting unit:

Ø All size of carton, height of carton and phase all adjustment by computerized, touch screen, save time, save labor, can storage 999 orders;

Ø Motorize pressure adjusting;

Ø Creasing adopts 3 shaft design, include big wheel creasing, creasing line clear and perfect, Will not crush cardboard.

Ø Slotting knife pedestal, creasing wheel and trimming knife moving adopts high precision Ball screws and linear guides, high precision positioning;

Ø The elastic corner cutting knife structure can cut three-layer and five-layer cardboard without adjustment.

Ø Slotting knife adopts alloy steel.

Ø Planetary gear structure, electric digital 360° adjustment of die-cutting phase (adjustable during operation and stop), electric adjustment of lateral position, adjustment distance ±7mm.

Ø Pre-Creasing, creasing, slotting knife computer one-key synchronization adjustment.

4. Option: Die cutting (computer slotting) Combine unit

Ø computer slotting attachment structure

Ø Die roll and Anvil cover roller thick wall seamless tube material, high-speed dynamic balance correction, increase operation stability, surface high-frequency quenching, grinding, hard chromium plating.

Ø Electric adjustment of the gap between the die-cutting rollers, imported original anvil cover, mechanical lateral ±30mm travel device, die-cutting equalizer automatically Compensates the linear speed, which can make the Anvil cover wear evenly and prolong the service life.

Ø Planetary gear structure, electric digital 360° adjustment of die-cutting phase (adjustable during operation and stop), electric adjustment of lateral position, adjustment distance ±7mm.

Ø Pre-Creasing, creasing, slotting knife computer one-key synchronization adjustment (optional independent servo drive, higher accuracy).
