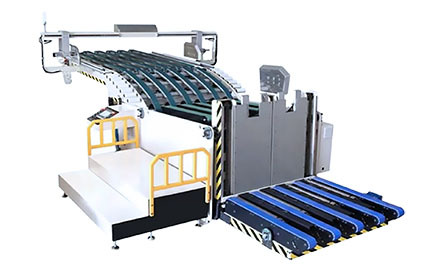

Automatic Pre-feeder
Automatic Pre-feeder
Automatic Pre-feeder
- Detail
- Parameters
Technical Parameter
Parameter | Unit | L | W | loading height | loading weight | Max. Speed | |
920 | Max. | mm | 2000 | 900 | 2000 | 1200 | 350 m/min |
924 | Max | mm | 2400 | 900 | 2000 | 1200 | 350 m/min |
1224 | Max. | mm | 2400 | 1200 | 2000 | 1200 | 350 m/min |
1228 | Max | mm | 2800 | 1200 | 2000 | 1200 | 350 m/min |
1424 | Max. | mm | 2400 | 1400 | 2000 | 1500 | 350 m/min |
1428 | Max | mm | 2800 | 1400 | 2000 | 1500 | 350 m/min |
1624 | Max. | mm | 2400 | 1600 | 2000 | 1500 | 350 m/min |
1628 | Max | mm | 2800 | 1600 | 2000 | 1500 | 350 m/min |
Structure Features:
1. Max. Speed requirement
Ø Maximum speed requirement:
Ø Paper loading height > 1600mm.
Ø Number of paper stacks per board is within single stack
Ø Cardboard warping requirement: 5% in paper width direction (1000mm, allowable warping within 60mm)
Ø The printed surfaces of the cardboard must be on the same side.
Ø At least one stack cardboard must be kept on the power track at the front end of the paper feeder fork.
2.power features
Ø Fork reversing power: hydraulic drive
Ø Horizontal conveyor lifting power: hydraulic drive
Ø Paper feeding method: single stack
Ø Paper feeding method: electric crawler logistics (ground fixed)
Ø Paper flipping method: fully automatic flipping
Ø One-button order arrangement and order memory kinetic energy
Ø Hydraulic standby function (automatic standby after exceeding the set time)
Ø Related parameters human-machine interface
Ø Abnormal text display is easy to eliminate quickly
Ø Oil tank anti-infestation treatment
