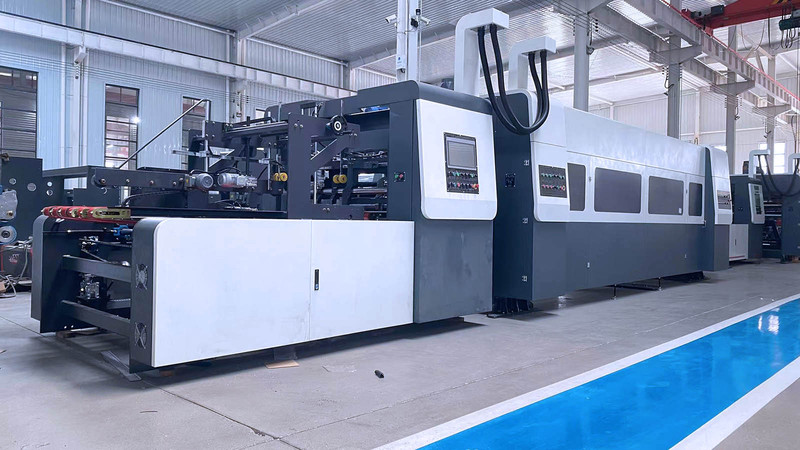

Structure Features:

1. paper receipt

Ø According to the thickness of the cardboard, the paper inlet is equipped with an electric fine-tuning device to ensure that the cardboard coming out of the printing press can fit perfectly into the folding beam.

2. gluing unit

Ø An independent motor drives the gluing part, and a servo motor controls the gluing position.

Ø optional: VALCO brand gluing spraying system.

3. Folding unit

Ø The folding unit is driven by a variable frequency motor with variable frequency speed regulation.

Ø The lower belt is driven by two servo motors independently, and the speed difference can be controlled separately to correct the cardboard scissor difference.

Ø The left and right movement of the folding beam is controlled by two servo motors, and the positioning is fast and accurate.

Ø The middle is equipped with a shaping wheel for more accurate folding.

Ø The gantry structure improves the stability of the machine operation.

4. counting ejection unit

Ø The counting ejection unit is driven by variable frequency motor, which has variable frequency speed regulation and is synchronized with the folding unit.

Ø pneuamtic push the stacks out, steady and fast.

Ø Servo-controlled carton size adjustment.

Ø Maximum sped up to 300 sheets per minutes (one sheet cut to one sheet)
