Technical Parameter

Vacuum Feeding unit

(1) Vacuum suction feeding for easy to feeding Curved corrugated board; the quantity of the wind adjustable; thick wall board of feeding parts;

(2) High quality Electromagnetic clutch, insure the feeder section can independent control, easy operation and reliable;

(3) Left side baffle adjusting by motorized,high precision screw transmission, equipped with position limited device; right baffle according board size manual adjusting; front baffle adjusting by hand wheel according the corrugated board thickness, back baffle with wheels according corrugated board length adjusting; all baffles adopts stainless or hard chrome plated parts;

(4) Equipped with top pre-creasing wheel for rectify the creasing, bottom roller covered with soft rubber for protect the corrugated board strength;

(5) Equipped with independent button control on feeding unit;

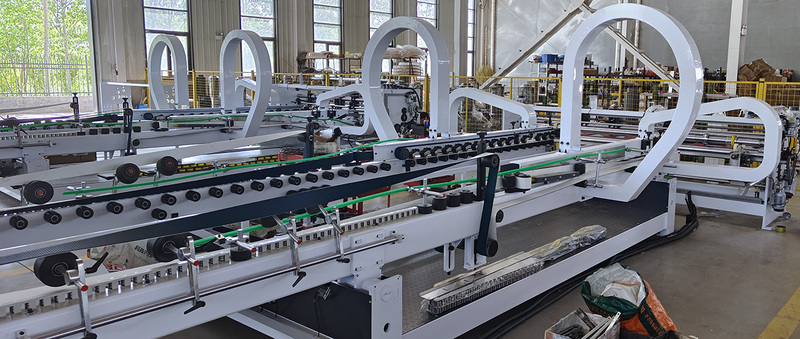

Gluing and folding unit

(6) Gluing parts attach with feeding unit, gluing head position automatically adjusting, from touch screen setting and from Remote controller can be micro adjusting; gluing tank adopts stainless material, easy clean, glue head adopts alloy steel material, long working life;

(7) Folding belts driving by frequency motor, speed by inverter control, synchronous with stitching unit speed and counting ejecting unit speed; Folding belts adopt Wear-resistant rubber belt, long working time;

(8) Folding parts bottom support adopts thick tube as main beams, joint with thick middle tube as cross shape, insure machine running steady; top main beams adopts thick steel tube welding, steady and wearable; folding angle parts adopts polymer plastic block, not broken the corrugated board surface,   all supports are chrome plated.

(9) Folding position automatically adjusting, driving by high quality reducer, from touch screen setting and from Remote controller can be micro adjusting; equipped with position limited device;

(10) Independent electric control box put on the end of   folding gluing unit;

Counting ejecting unit

(11) middel hollow steel plate structure; middle top and bottom press belt device adopts hand wheel adjusting;   equipped with Speed difference compensation device;

(12) Adopts photoelectric switch control Counting, accurately and reliable;

(13) Ejecting adopts automatic control, with high quality pneumatic device;

(14) Counting quantity setting from touch screen;

(15) Stacking length adopts hand wheel adjusting to frontward or backward;

(16) Independent frequency motor driving, equipped with inverter adjusting the speed and synchronous the speed with folding gluing unit and stitching unit;

(17) Bottom belt driving by motorized; top belt driving by motorized; press bar lifting and lowering by motorized, according the stacks height adjusting;

(18) Equipped with emergency stop button on this unit;
